BWT1500 serial 220Vdc &220Vdc modular parallel connection inverter is an inversion device that converts 220V dc/220Vdc power supplied by communication DC power supply into 220V/50Hz sinusoidal AC power. Through conversion on the input DC power, the Pure Sine wave inverter offers users stable and Non-distorted AC power. In case of a power failure in business places, it offers key devices the power of flexible output voltage and frequency.

Basic System Architecture

The following illustration shows the basic application for this inverter. It also includes the following devices to
have a complete running system:

Product Overview

√ ? Digital control: It adopts 32-bit DSP full digital and high-frequency SPWM technology, featuring strong anti-interference ability, fast calculation speed, high intelligence, accurate control precision and pure output waveform

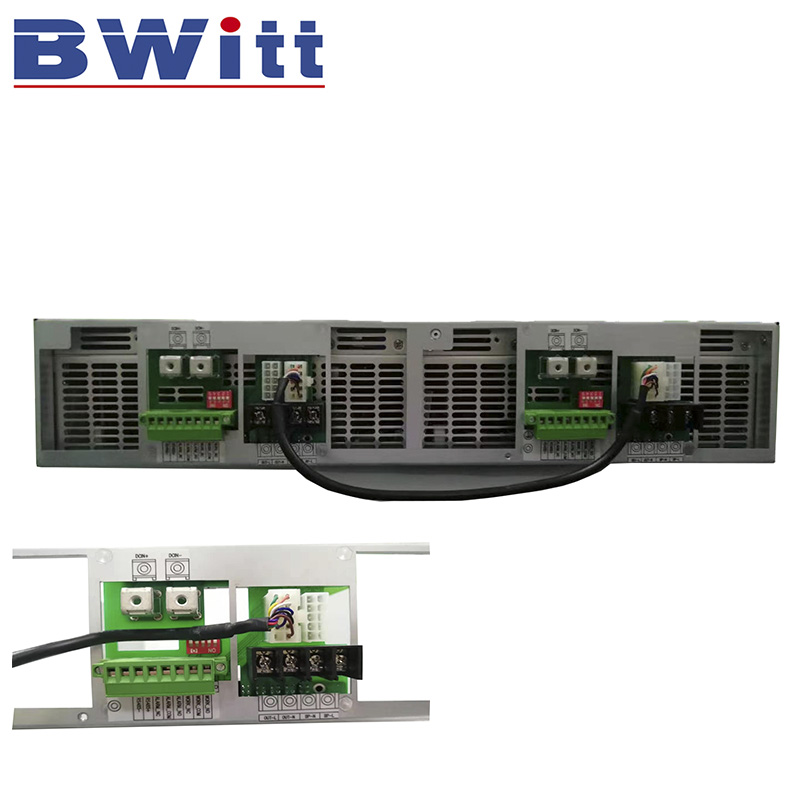

√ ? N+1 parallel redundant design: It can form an N+1 parallel redundant power supply system. The modules are backup each other, with high reliability and flexible configuration.Large 128*64 digital LCD display data information,4 led display working;
√ ? No master-slave parallel technology: The operation and parallel connection of each module are independently controlled by the built-in DSP, no single point of failure, independent flow between modules.
√ ? With hot plugging: no need to do any parameter setting and operation, plug and play, the module automatically enters the normal working state, maintenance and replacement is simple and fast.
√ ? Module built-in bypass: Users can choose inverter priority or bypass priority
√ ? Monitoring management: indicator panel, fault sound and light alarm, RS485 communication interface and fault dry contact.
√ ? Protection function: It has the functions of input over-voltage, output over-voltage, over-temperature, short-circuit and so on.

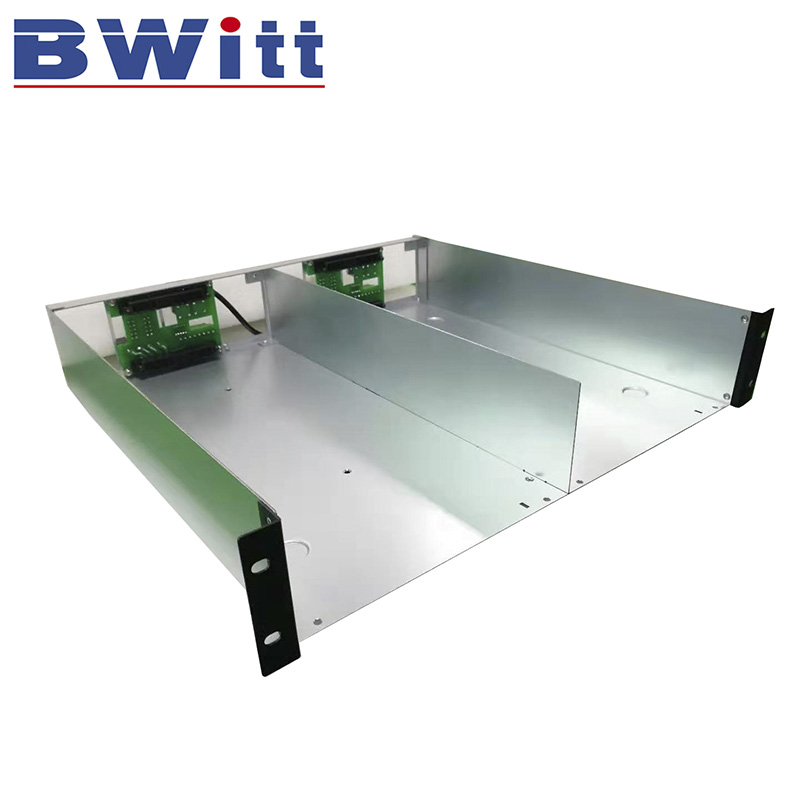

√ ? High power density: 1/2 19〞 width design, the volume is only half the width of the conventional inverter, saving space and convenient parallel.

Technical Data
Model	BWT220/220-3KVAS
INPUT
DC Input Voltage	220Vdc
DC Input Current	13.6Max
DC Input Voltage Range	190-270V
Backfill Noise Current	≤10%
PF	0.8
AC BY-PASS INPUT
Input Voltage Range	270V-190V(±10Vac)
Rated Input Current	13.6A
Transfer Time	<12ms
OUTPUT
Output Capacity	3000VA
Rated Output Capacity	2400W
Rated output Voltage	220VAC
Rated Output Current	10.9A
Output Voltage Range	220Vac(Tolerance ±1.5% )
Output Efficiency	≥85%
Output Frequency	50Hz
Frequency Range	43~67Hz
Output Wave	Pure sine wave
THD	≤3% (Line Load)
Switch Time (By pass to Inverter mode)	≤12ms (With Load)
Output Frequency Range	50±0.1% or 60±0.1%
Dynamic Response Time	5%(load 0←→100%)
PF	0.8
Output Over Current Protection
Over Load Capacity	Continue working 10min @105%<load<125%
Over Load Capacity	Continue working1min @ 125%<Load<150%
Over Temp. Protection	Yes
short circuit Protection	Yes (Don’t test under AC Connect)
Reverse connection protection	Yes
ENVIRONMENT TEST PERFORMANCE
Ambient Temp.	-20~ +50℃
High temperature operation	50±2℃ (rated load 24H)
Low temperature operation	-20±2℃ (rated load 24H)
High temperature storage	80±2 ℃，24H
Low temperature storage	-40±2℃，24H
Humidity	0~90%，No moisture condensation
Operating Altitude (m)	Altitude Full power up to 2000m.derating -2% / 100m, max altitude 5000m
PARALLEL MODE
Max Parallel quantities	8 units

MEASUREMENT
Module Size WDH(mm)	216mm 426mm44mm
Cabinet Size WDH(mm)	482mm441mm44mm
Module Weight(total)	5.5kg
Cabint Weight	3.5kg

BWT220/220-3KVAS Technical Sheet
